ES Project Overview
A shipyard in Panama approached Yuantai Crane via YouTube videos seeking a reliable lifting solution for daily ship repair and maintenance operations. The client required equipment capable of handling heavy marine components under highly corrosive coastal conditions, while ensuring operational safety, precision, and low maintenance overhead.
After technical consultation and application analysis, Yuantai Crane supplied:
- Quantity: 2 Units

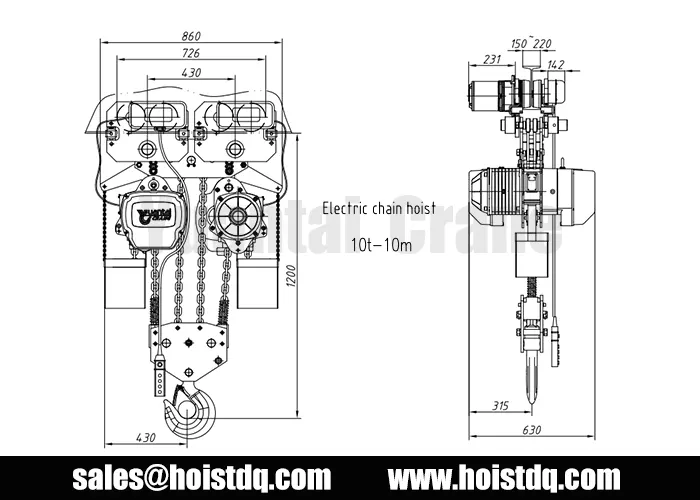

- Product: 10 Ton Electric Chain Hoist
- Chain Type: Stainless Steel Chain
- Lifting Height: 10 meters
- Lifting Speed: 3.2 m/min
- Trolley Speed: 13 m/min
- Power Supply: 208V / 60Hz / 3 Phase (customized)
- Protection Class: IP54
Client Background
The customer is a mid-to-large-scale shipyard located near a coastal industrial zone, specializing in:
- Vessel repair and retrofitting
- Mechanical component replacement
- Marine equipment maintenance
Their operations involve frequent lifting of:
- Pumps and valves
- Engine components
- Steel structures
- Auxiliary ship systems
Given the proximity to seawater, the environment is characterized by:
- High humidity (70–90%)
- Continuous salt-laden air exposure
- Occasional heavy rainfall
- Moderate but constant ambient temperatures
These conditions significantly accelerate corrosion and increase the risk of failure in standard lifting equipment.
Key Challenges Faced by the Client
Severe Corrosion Risk
The client had previously used conventional lifting hoists with standard alloy steel chains. Within a short operational cycle:
- Chains showed visible rust within months
- Lubrication became ineffective due to salt contamination
- Increased risk of chain jamming and structural degradation
This created both safety hazards and frequent replacement costs.
- High Maintenance Frequency
- Due to environmental exposure:
- Components require frequent inspection and servicing
- Downtime increased due to unexpected failures
- Maintenance costs escalated over time
The client needed a solution that could reduce lifecycle costs, not just initial investment.
Electrical Compatibility Issues
Unlike many regions using 380–415V systems, the client’s facility operates on:
208V / 60Hz / 3 Phase
Most standard hoists in the market were incompatible without modification, creating sourcing challenges.
Operational Precision and Stability
Ship repair tasks require:
- Controlled lifting speed
- Stable horizontal movement
- Accurate positioning of heavy components
Any instability could damage expensive marine equipment or delay repair schedules.
Yuantai Crane’s Tailored Solution
After a detailed technical consultation, Yuantai Crane engineered a solution specifically adapted to the shipyard’s environment and operational requirements.
Stainless Steel Chain for Marine Durability

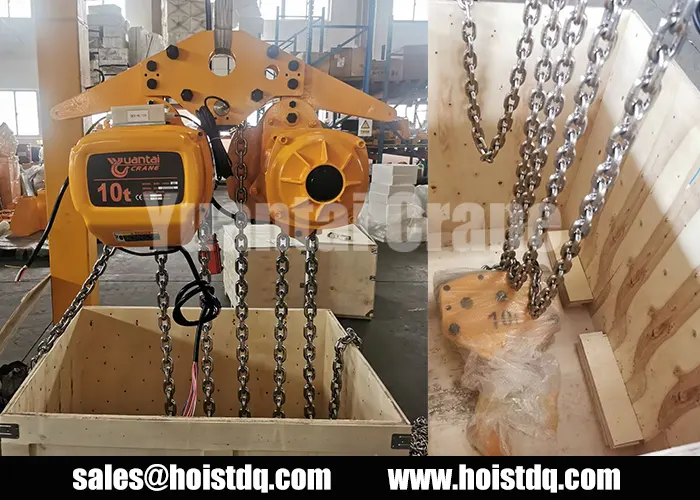

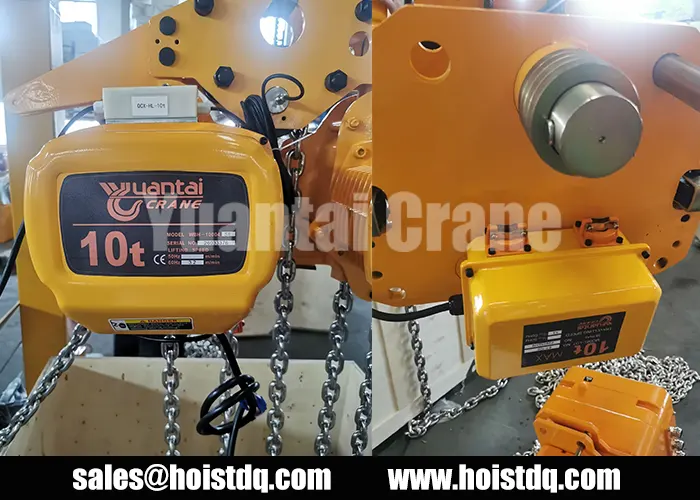

To directly address corrosion, the 10 ton electric hoists were equipped with high-grade stainless steel chains.
This upgrade provided:
- Excellent resistance to salt-induced corrosion
- Extended service life in coastal environments
- Reduced lubrication dependency
- Improved operational safety
Compared to conventional chains, this significantly lowered the risk of:
- Chain failure
- Unexpected downtime
- Frequent replacements

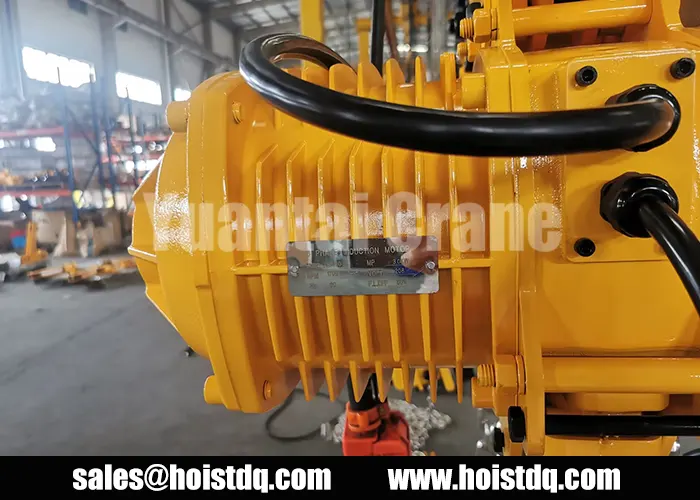

Customized Electrical System (208V / 60Hz / 3 Phase)
Yuantai Crane designed a fully compatible electrical system to match the client’s local power conditions.
Key benefits:
- Seamless integration into existing infrastructure
- No need for additional transformers
- Stable motor performance
- Improved energy efficiency
Optimized Lifting & Travel Performance
The selected parameters were carefully matched to shipyard workflows:
- Lifting Speed (3.2 m/min): Ensures controlled vertical movement for precision tasks
- Trolley Speed (13 m/min): Enables efficient horizontal transport without compromising safety
This balance allowed operators to:
- Handle heavy loads smoothly
- Reduce positioning errors
- Improve overall workflow efficiency
Robust Protection Design (IP54)
To withstand harsh environmental conditions, the hoists were built with:
- Dust and splash protection
- Sealed electrical components
- Durable external coatings
This ensures reliable performance under:
- High humidity
- Salt exposure
- Occasional water splashes
Heavy-Duty Structure for Continuous Use
The hoists were engineered for medium-to-high duty cycles typical in ship repair operations.
Key features include:
- High-strength gearbox
- Reliable electromagnetic braking system
- Stable multi-chain configuration for 10-ton capacity
Implementation and Results
After the 10 ton chain hoist installation, the equipment was successfully integrated into the shipyard’s maintenance workflow.
Immediate Improvements Observed:
- Reduced corrosion issues: No early-stage rust or degradation
- Lower maintenance frequency: Less downtime for inspections and repairs
- Improved operational safety: Stable lifting and reliable braking
- Higher efficiency: Faster handling of heavy marine components
Client Testimonial:
“We had corrosion issues with our previous hoists, especially in this coastal environment. Yuantai recommended stainless steel chains and customized the voltage for us, which solved the main problems.
The 10 ton elctric chain hoists have been running reliably so far, with much less maintenance than before.”
— Maintenance Manager, Shipyard in Panama
Why the Client Chose Yuantai Crane
- Ability to provide custom-engineered solutions
- Proven experience in marine and port applications
- Strong focus on anti-corrosion design
- Responsive technical communication
- Competitive cost-performance ratio
Get a Customized Hoist Solution for Your Project
If you are operating in coastal or high-humidity environments like Panama, selecting the right lifting equipment is critical to ensure long-term reliability and cost control.
At Yuantai Crane, we don’t just supply standard hoists — we provide application-based solutions tailored to your actual working conditions. Whether you are working in a shipyard, port, or industrial facility, our engineering team can help you identify the most suitable configuration for your project.
Feel free to send us your requirements (lifting capacity, height, environment, and power supply), and we will provide a professional recommendation and quotation within 24 hours.
FAQs: Electric Chain hoist for sale in Panama
Why is corrosion resistance so important in Panama?
Panama’s coastal and tropical climate combines high humidity, salt-laden air, and frequent rainfall, significantly accelerating metal corrosion.
Without proper anti-corrosion measures:
- Chains can rust within months
- Internal components may degrade
- Maintenance costs increase
This is why stainless steel chain hoists are strongly recommended, especially for shipyards and port applications.
What protection level (IP rating) is recommended?
For Panama environments:
- IP54: Suitable for semi-protected indoor use
- IP55-IP65: Recommended for outdoor or marine environments
Higher IP ratings provide:
- Better sealing against moisture
- Improved durability in rain and salt air
What industries commonly use 10 ton electric chain hoists in Panama?
Typical applications include:
- Shipyards and marine repair
- Port maintenance
- Steel structure installation
- Industrial equipment assembly
How do I choose between a chain hoist and a wire rope hoist?
Electric Chain Hoist:
- Compact design
- Easier maintenance
- Ideal for ≤10-35 ton applications
- Better for precise positioning
Wire Rope Hoist:
- Higher lifting height
- Lifting capacity from 1 ton to 80 tons
- Better for very heavy-duty or high-speed operations
How can I get the electric chain hoist price from Yuantai Crane?
To receive a customized solution and free quote, you can provide:
- Lifting capacity (e.g., 10 ton)
- Lifting height
- Lifting speed (single/dual)
- Working environment (indoor/outdoor/coastal)
- Power supply (voltage/frequency)
- Special requirements (anti-corrosion, explosion-proof, etc.)
Send the above information to us, and our engineering team will then:
- Analyze your application
- Recommend the optimal configuration
- Provide a detailed quotation and technical proposal
