Electric Chain Hoist Project in Malaysia

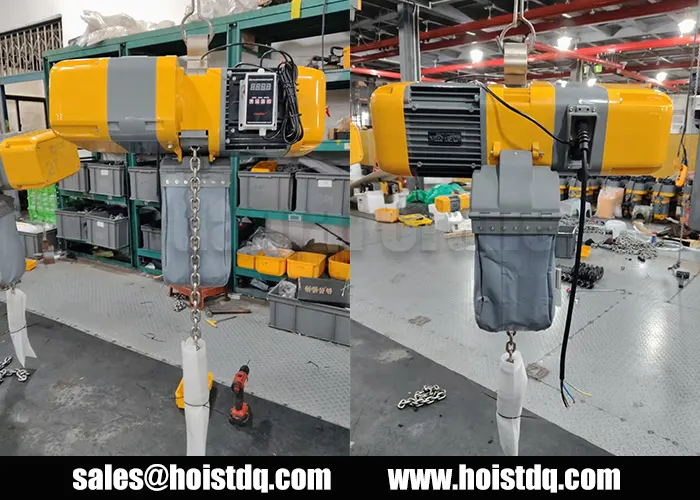

Yuantai Crane supplied two 2 ton fixed electric chain hoists for an industrial lifting application in Malaysia. Each hoist features a 6-meter lifting height, two lifting speeds, IP55 protection, and M5 duty classification.
The 2 ton hoists are equipped with pendant and remote controls. They can operate independently for separate lifting tasks, while the remote control can command both units to lift or lower simultaneously when required.
Each hoist is installed on a separate KBK flexible track structure, allowing the two structures to move independently along their respective tracks. This arrangement offers flexibility for workshop lifting and equipment handling.
Electric Chain Hoist Specifications
The main specifications of this Malaysia project are listed below.
| Specification | Details |
| Product | Electric chain hoist |
| Quantity | 2 units |
| Rated capacity | 2 tons per hoist |
| Hoist type | Hook suspension |
| Lifting height | 6 m |
| Lifting speed | 2.2/6.8 m/min |
| Duty classification | M5 |
| Protection rating | IP55 |
| Power supply | 415V/50Hz/3-phase |
| Controls | Pendant control and remote control |
| Operation | Independent or remote-controlled simultaneous lifting/lowering |
| Installation | Separate KBK flexible track structures |
Application: Electric Chain Hoists for Workshop Lifting
Electric chain hoists for sale from Yuantai Crane are commonly used in machinery manufacturing, equipment assembly, maintenance, and industrial workshops to handle components during production and assembly.
For this Malaysia project, the two hoists provide three practical benefits.
Component Handling and Equipment Assembly
Each 2 ton electric chain hoist has a 6-meter lifting height, making it suitable for handling machinery components, equipment parts, and assembly materials when their weights and dimensions fall within the rated limits.
Two Hoists on Separate KBK Track Structures
Each fixed-type hoist is installed on its own KBK flexible track structure.
- Independent movement: Each structure travels along its own track.
- Separate lifting tasks: The hoists can handle different loads independently.
- Flexible workspace coverage: Each unit serves its designated working area without requiring the other structure to move with it.
Independent Operation or Simultaneous Lifting
The electric chain hoists can be operated separately or commanded to lift and lower simultaneously through the remote control.
If both units are intended to lift one workpiece, the lifting points, load distribution, control system, and supporting structure must be assessed for that specific arrangement. Simultaneous operation does not automatically guarantee precise synchronization or equal load sharing.
Key Advantages of Electric Chain Hoists in Malaysia

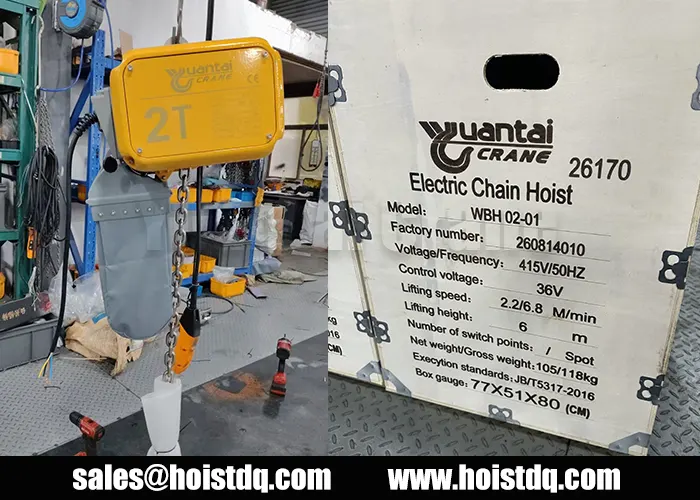

For this Malaysia project, Yuantai Crane supplied two 2 ton double speed electric chain hoists with a 6-meter lifting height, IP55 protection, and M5 duty classification. Each configuration serves a practical purpose in daily workshop operations.
Double Speed Lifting for Greater Operating Flexibility
With lifting speeds of 2.2 and 6.8 m/min, operators can choose a slower speed for controlled lifting and lowering or a faster speed for routine material handling. This helps balance lifting efficiency with the need for more careful load placement.
2 Ton Capacity and 6-Meter Lifting Height
Each hoist provides a 2-ton lifting capacity and a 6-meter lifting height, offering a practical configuration for handling machinery components, equipment parts, and assembly materials.
At Yuantai Crane, we can recommend suitable lifting capacity and height based on your workpiece weight, lifting requirements, and available installation space.
IP55 Protection for Everyday Industrial Use
The IP55 protection rating makes these hoists suitable for many general industrial environments where dust and water-jet exposure are considerations. It provides an additional level of protection for equipment used in demanding workshop conditions.
M5 Duty Classification for Industrial Operations
The M5 duty classification is part of the hoist configuration for this project. When selecting equipment, Yuantai Crane considers the expected operating frequency and workload to help match the hoist to the customer’s application.
Configuration to Match Local Power Supply
These hoists are configured for 415V, 50Hz, three-phase power. We can confirm the required electrical specifications with customers before production to help ensure that the selected equipment matches the project requirements.
Flexible Operation with Pendant and Remote Controls
The two electric chain hoists are equipped with pendant and remote controls, giving operators flexible ways to manage lifting tasks.
Independent Operation for Different Lifting Tasks
Each hoist can be operated independently, allowing the two units to handle separate loads as needed. Installed on separate KBK track structures, they can also move independently along their respective tracks.
This arrangement helps make better use of the available workshop space and supports different lifting tasks without requiring both hoists to operate together.

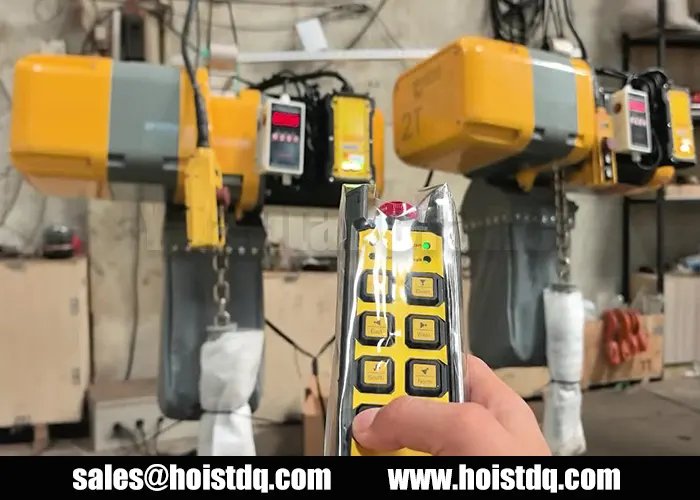

Remote Control for Simultaneous Lifting and Lowering
The remote control allows operators to command both hoists to lift or lower at the same time when the task requires it. This provides a convenient operating option for applications where both units need to work together.
At Yuantai Crane, we can help customers select suitable hoist configurations and control options based on their lifting tasks, operating preferences, and installation requirements. For projects involving two hoists handling one workpiece, our team can also review the proposed lifting arrangement to help determine the appropriate solution.
Electric Chain Hoist Options from Yuantai Crane for Malaysia
Yuantai Crane supplies electric chain hoists for a range of industrial lifting applications in Malaysia. Depending on the project requirements, customers can select suitable configurations for lifting capacity, lifting height, speed, control method, and installation.
Our electric chain hoist options include:
Available configurations depend on the required capacity, lifting height, operating conditions, and control arrangement. Contact Yuantai Crane to discuss the appropriate electric chain hoist for your application.
Request an Electric Chain Hoist Quotation
Looking for an electric chain hoist for your workshop or production facility in Malaysia?
Send Yuantai Crane your required lifting capacity, lifting height, lifting speed, power supply, control preferences, and installation details. Our team can review your requirements and recommend a suitable configuration.
Contact Yuantai Crane for an electric chain hoist quotation today.
FAQs About Buying Electric Chain Hoists in Malaysia
Can I Buy Electric Chain Hoists Directly from a China Manufacturer?
Yes. Yuantai Crane supplies electric chain hoists directly from China. You can send your lifting requirements to our team for product selection and a project-specific quotation.
How Much Does an Electric Chain Hoist Cost in Malaysia?
The price depends on lifting capacity, height, speed, control options, and quantity. For an accurate quotation, share your specifications and delivery destination in Malaysia.
Can Yuantai Crane Ship Electric Chain Hoists to Malaysia?
Yes. We can discuss export packing and shipping arrangements for your order. Delivery costs and lead times depend on the equipment configuration, order quantity, and destination.
What Documents Can I Get When Purchasing an Electric Chain Hoist?
Depending on the product and order requirements, we can confirm the available technical specifications, drawings, operation manuals, and applicable product documentation before shipment.
Does Yuantai Crane Provide Installation and Technical Support?
We can provide technical support through drawings, manuals, videos, and remote communication. On-site installation support can also be discussed according to the project requirements.
What If I Need Spare Parts or After-Sales Support?
Contact Yuantai Crane with the hoist model, nameplate details, and a description of the issue. Our team can review the information and advise on the available support or compatible replacement parts for your equipment.
