Electric hoist control
Electric hoist control of Dongqi Crane to get your Electric hoist control. Dongqi Electric hoist controls have your crane under control efficiently and safety.
Electric hoist control
Emerged in the industry as a manufacturer and supplier, Dongqi Crane is engaged in offering Electric hoist control. We supply and install various types of crane Control Systems to all kinds of electric hoists and overhead cranes.
Supply of electric hoist control

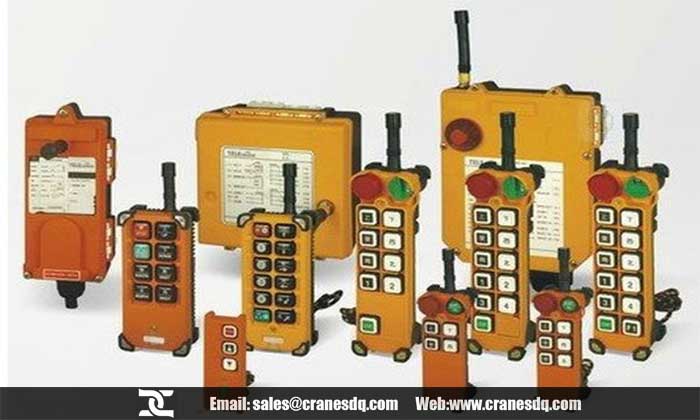

We supply a range of excellent quality remote Electric hoist control and receiver kits that are easily integrated into the existing Electric hoist control, enabling full operation of all motions and speeds including emergency stop features.
Components of crane control systems
Dongqi crane control systems comprise a hand held radio remote crane control (two with some brands), a charger and a receiver. The radio remote transmits the signal and command that you have selected which is instantly received and transferred into the controls of the crane or hoist by the receiver to carry out the task instantly.
Features of Electric hoist control
Dongqi Hoist and Crane has the features of the easy functioning, longer service life and compact design, etc.
Electric hoist control inspections
Before operating an electric hoist, it is critical to check the electric hoist controls. If an electric hoist control is not properly labeled or is not working correctly, people can get injured and loads, and the surrounding environment can be damaged.
When inspecting electric hoist controls, the following two aspects needs to be noticed: the overall condition of the Electric hoist control, including clear markings and labels, and the functioning of the Electric hoist controls.
Condition of electric hoist control condition
Before operating an electric hoist, the condition of Electric hoist controls, including the pendant housing, buttons, and cables should be checked to look for cracks, loose wires, and frays, and anything that appears to be abnormal or unsafe. Specific areas to be checked presented in the following Electric hoist control drawing:
Below are some pictures of pendant Electric hoist control picture collected from google, which are the typically abused pendants controls. The circled area are some examples of what to look for when inspect the electric hoist controls.
If any of these issues or other unsafe conditions are detected on the electric hoist pendant, the electric hoist should be taken out of duty until the hoist pendant is repaired.
Checking Electric hoist control Buttons: Markings & Operation
Control buttons should be inspected to make sure they are labeled clearly and correctly. This inspection is one of the pre-operational inspections which should be conducted before using a powered electric hoist.
Warnings before testing the pendant’s operation
- Ensure the area under the electric hoist or crane is clear of obstructions.
- Make sure there is no one under or in the path of the electric hoist, including yourself.
- Do not put loads on the electric hoist during this test.
- If the limit switch fails, make sure you do not run the bottom block into the electric hoist, drum or trolley. This action can damage the electric hoist. Please note that some electric hoists do not have limit switches.
- Be prepared to stop the electric hoist by releasing the controller.
Once you have taken these safety precautions, you are ready to operate and test the electric hoist controls.
Follow the procedures to check for proper operation: First, you need to verify the markings on the pendant are correct – that “up” moves the electric hoist up and “down” moves the electric hoist down.
- 1. Test that the trolley controls move the trolley left or right as indicated on the pendant buttons.
- 2. Test the bridge to ensure it moves as specified on the pendant.
– Check any warning devices on the pendant as well, if applicable. For example, horns, an indicator light, etc.
– Make sure Electric hoist controls were not modified or safety features were not disabled. T Do not operate any electric hoist with modified Electric hoist controls.
– One suggestion: labeling Electric hoist controls with “north,” “south,” “east” and “west” instead of “left’ and “right” to avoid any confusion.
– All functions of the electric hoist must work properly and as marked on the pendant. If not, the electric hoist must be taken out of work.
Once you have ensured the electric hoist controls are clearly marked and functioning properly, you are ready to operate your electric hoist.
If there is any doubts on Electric hoist controls and electric hoist control inspections, please feel free to contact us.
