European Electric hoist

ND type European Electric Hoist
ND type European electric hoist

European electric hoist overview

European electric hoist is a newly developed material handling equipment with advanced design technology according to the FEM standards, European hoist standards and other regulations. The new serial of European electric hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products. The lifting capacity of the European electric hoist is 1 to 80 tons and the working class is M5 and M6. Customized European electric hoists are available. And the main parameters are presented for your reference.

  •  Product Type:  ND
  • Lifting Capacity:       1~80t
  • Lifting Height:         6~50m
  • Working Class: M5, M6
  • Ambient Temperature:    -20~40℃

Features of European electric hoist

The features of European electric hoists are as follow:

On hoist machinery of European electric hoist

  • Single girder European electric hoist can lift up to 12.5 ton
  • Scientifically and compactly designed and arrangement make European electric hoist can be used in confined space and have the lifting height increased.
  • FEM calculations for standard lifting gear, the European electric hoist can lift loads form 1 to 80 tons.
  • European electric hoist has the features of smooth and silent operation, extended working life, lift-time lubrication and double surface DC brake, etc.

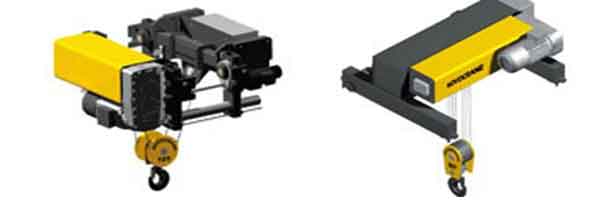

Single girder hoist up to 12.5 ton Double girder hoist up to 80 ton

      Single girder hoist up to 12.5 ton         Double girder hoist up to 80 ton

On hoisting motor of European electric hoist

  • The European electric hoist is equipped with double speed changing squirrel cage motors or equipped with frequency converter motor for variable speed control.
  • The European electric hoist motors have the features, such as, specification according to FEM, and HMI, etc. , low start current, quiet operation, dynamic acceleration characteristic, optimized switching properties for 2 speed motors, double surface brake, and upgraded insulation for inverter operation.

Gears of European electric hoist

  • Sealed gearbox housing of European electric hoist are made of aluminum.
  • Gears run in totally enclosed semi-fluid or oil bathe lubrication, designed for the lifetimes of the crane.
  • The case-hardened gears with high grade surface treatment ensures high reliability and smooth running with minimum of maintenance.

Brakes of European electric hoist

  • DC magnetic disk brakes are equipped to European electric hoist motors which are adjustment free.
  • The brakes and motors of European electric hoist are designed and manufactured to work together so that the load will not slip when starting, lowering or stopping, etc.
  • European electric hoist brake is fully covered and is dust proof.

Drum and rope of European electric hoist

  • The drum of European electric hoist is made from high quality steel tubing and has precise grooved for the rope to prevent rope overlap.
  • The wire rope of European electric hoist is galvanized, free-maintenance and high strength, with 2016N/nn2 breaking force, good flexibility and long lifetime, which is suitable for all standard applications of material handling.

Cross travel drives of European electric hoist

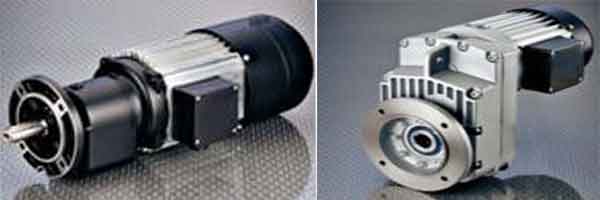

Gears for electic hoist
G- serial flange mounted helical gears                F- serial flange mounted helical gears

  • The cross travel drives of European electric hoist can withstand unfavorable conditions such as low power supply and aggressive surroundings.
  • The travel motors of European electric hoist are equipped with DC magnetic disk brakes which is adjustment free.
  • All motors of European electric hoist comply with related standards, such as, CE, VDE, DIN, UL/CSA, CCC, ETC. Single and double speed drives are also available.

Limit switches of European electric hoist

  • In order to keep the hood from over travel, the adjustable geared and self re-setting hoist and lower limit switches are provided.
  • Automatic cut-off during the lifting and lowering motions in upper and lower limit positions are realized.

Safety monitor of European electric hoist

The European electric hoist can be equipped with a safety monitoring unit, with the features of practical, easy to use and sophisticated, which will stop the electric hoist when hoist overloading or motor overheating occur, which increases safety and optimize maintenance of European electric hoists.
