Singel speed wire rope hoist

Single speed wire rope electric hoist

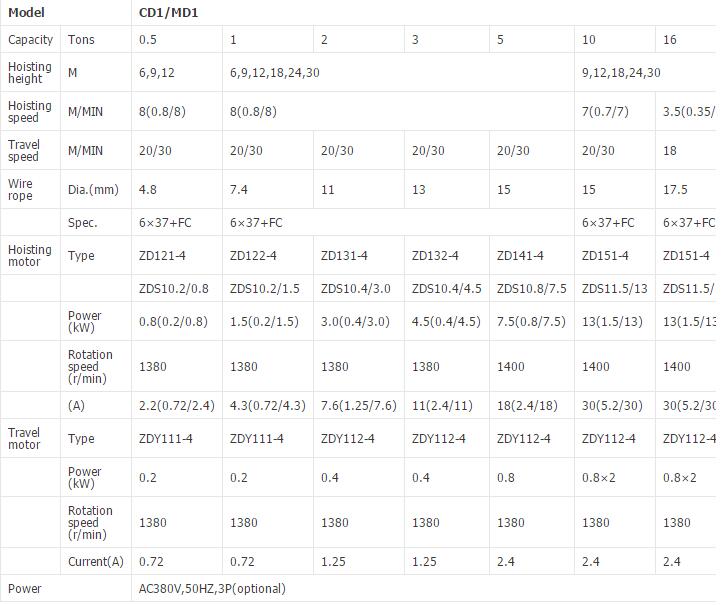

Lifting Capacity: 0.5~32t

Lifting Height: 6~48m

Lifting Speed: 3.5—8m/min

Working Class: M3,M4

Ambient Temperature: -20~40℃

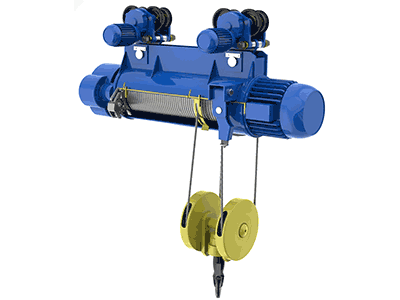

Single speed wire rope Electric hoist introduction

Wire rope electric hoists is a small-sized lifting equipment, which can be mounted on single girder steel I-beam, bridge crane, gantry crane and jib crane, with slight modification, lifting capacity range from 1~32 tons. it can also be used as a winch, it have many types such as CD,MD,YH,HC,BCD etc, If divided according to lifting speed, it contains two types, one is single lifting speed 7m/min or 8m/min, another is double lifting speed 0.3/3 m/min, 0.7/7 m/min and 0.8/8 m/min, normally traveling speed range is 14~20 m/min; if divided according to its use purpose, it includes ordinary hoist, explosion-proof hoist, mine hoist and low headroom.

Features

1. Brake: adopting D.C. normal close brake, without asbestos.Once the motor stop, the brake can old the load safely and timely;
2. Electronic Limit Load Device: This hoist is equipped with electronic limit load device, which prevent chain being over tight;
3. Friction Clutch: which can make the motor idle running to avoid damage under overload and over tight revolving;
4. Heat Protection Device: The motor is equipped with heat protection device, which preventing the motor to be damaged under overheat;
5. Hooks:Top and bottom hooks are made of high tensile alloy steel with special heat treatment. It prevents the hook from breaking and being deformed gradually under a sudden extra-load;
6. Control handle:Push button control fits operator’s hand operation. Impact and chemical atmosphere resistant;
7. Safety latches:Top and bottom hooks are fitted with safety latches as standard.
