ES In many industrial workshops across the United States, overhead lifting equipment is no longer selected based on lifting capacity alone. Modern manufacturers pay close attention to operational smoothness, precise load handling, structural limitations, and long-term uptime.
Recently, a machinery workshop in Texas, USA, faced a common facility upgrade dilemma. Instead of modifying their existing building, they partnered with Yuantai Crane for a tailored European-spec wire rope hoist solution.
Project at a Glance
| Project Location | Texas, USA |
| Industry | Machinery Workshop (Equipment Maintenance & Assembly) |

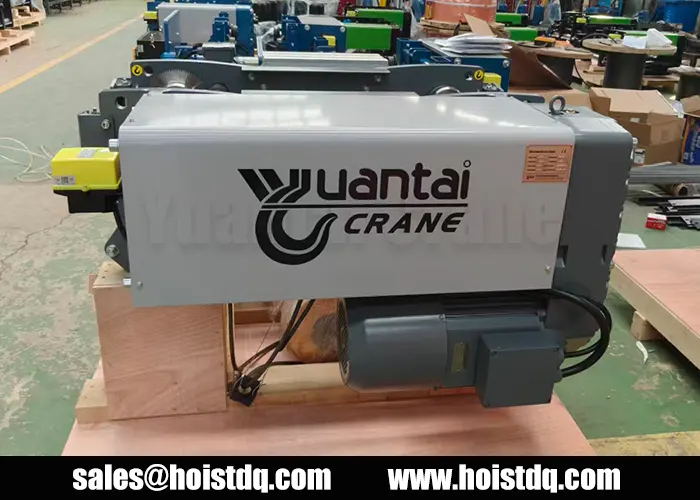

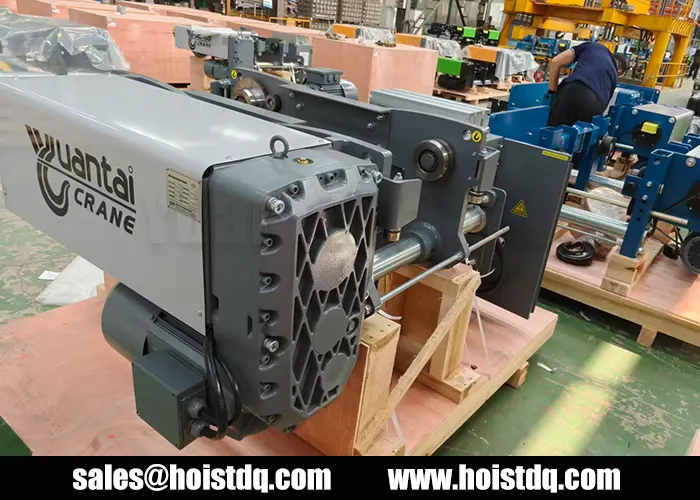

| Equipment Supplied | 2 Units of 5-Ton Low Headroom European Wire Rope Hoists 2 Units of 10-Ton Low Headroom European Wire Rope Hoists |
| Lifting Height | 10 meters (32.8 ft) |
| Control System | Full Variable Frequency Drive (VFD) Control |
| Hoisting Speed | 0.8–5 m/min (Inverter Control) |
| Traveling Speed | 2–20 m/min (Inverter Control) |
| Power Supply | 480V / 60Hz / 3Phase |
| Control Method | Pendant control + Remote control |
| Core Customization | Special trolley design for narrow existing runway beam width |
The Challenge: Upgrading Hoists on a Narrow Existing Runway Beam
Unlike new-build facility projects where crane structures and lifting systems are designed together, this Texan workshop had a pre-existing runway structure installed years ago. While the steel runway beams were in excellent structural condition, the top flange and rail width were relatively narrow, creating a major compatibility issue for standard European-style hoists.
For many facility managers in the US, this is a very common headache:
- Factory owners want to modernize their material handling without the massive cost and downtime of rebuilding the steel structure.
- Standard off-the-shelf hoists often require wider beam flanges for proper wheel seating and safety clearance.
- Standard configurations often sacrifice hook approach or headroom, limiting the effective lifting window.
The Texas client frequently handles heavy mechanical components and precision assembly work. They needed a system that offered stable movement, minimal load swing, and zero structural modification to their shop.
The Goal: Find a heavy-duty, high-precision European hoist that fits perfectly onto a narrow, non-standard existing beam, while maximizing the available lifting height.
The Solution: Custom Engineering by Yuantai Crane

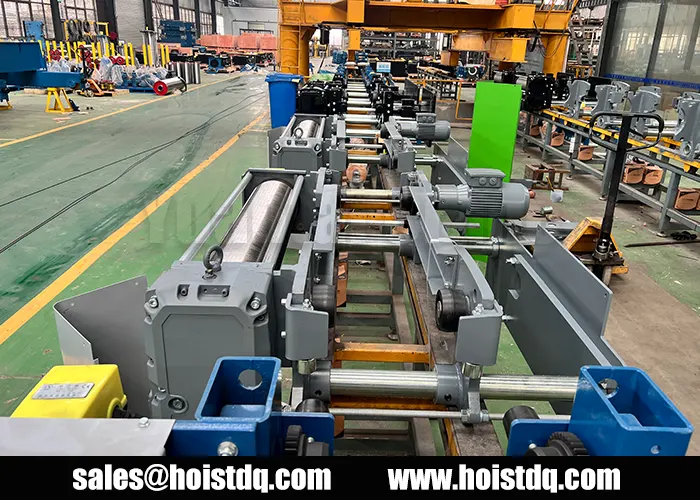

Instead of pushing for costly civil modifications, the Yuantai Crane engineering team designed a customized low-headroom trolley wheel assembly specifically adjusted to the client’s actual beam dimensions.

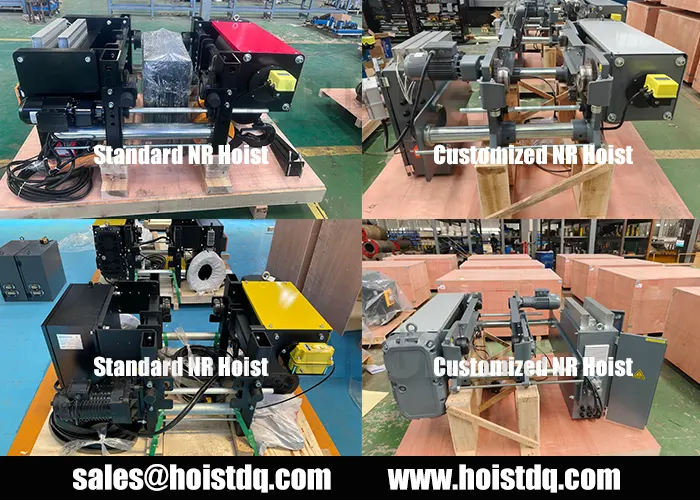

Tailored Trolley Design for Narrow Beams
Our engineers optimized the trolley frame layout, adjusting the distance between wheels and modifying the wheel flanges. This ensured perfect alignment, stable traveling performance, and proper wheel load distribution on the narrow runway, meeting all industrial safety clearances under full load conditions.

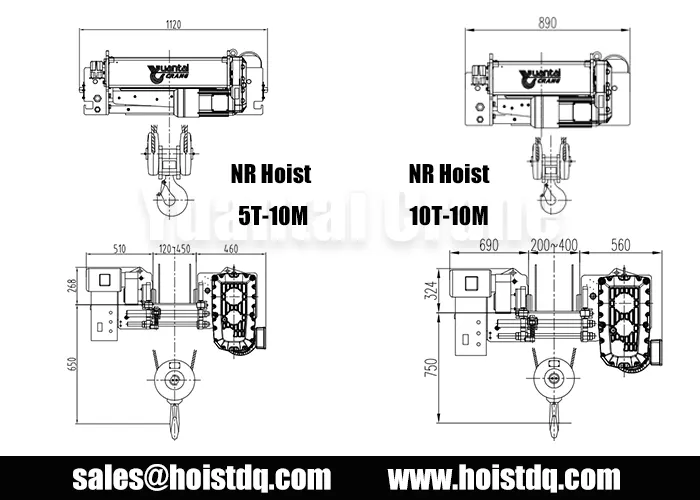

Low-Headroom Design to Maximize Hook Height
In machinery assembly, every inch of vertical space matters. The European low-headroom configuration places the hoist body parallel to the beam, minimizing the distance from the hook to the bottom of the beam. This allowed the Texas workshop to maximize its effective lifting height without altering the building’s roof structure.

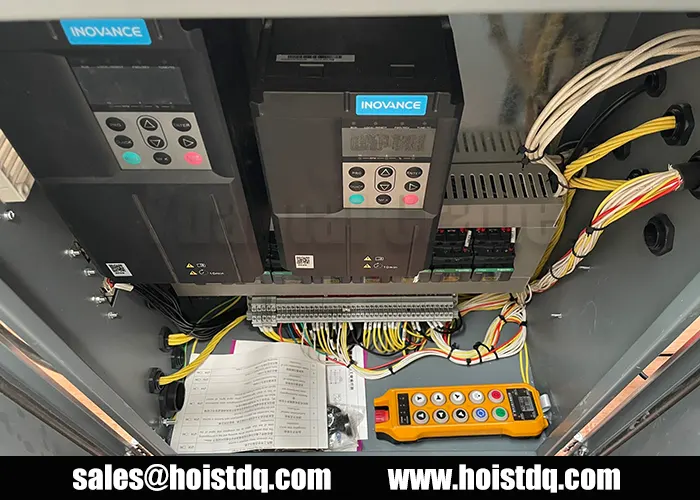

Full VFD Control for Micro-Positioning
Precision handling is critical during mechanical assembly and equipment maintenance. Sudden jerks can damage expensive components or compromise operator safety.
To eliminate this risk, all four wire rope hoists feature full variable frequency drive (VFD) control for all motions:
- Hoisting Speed (0.8–5 m/min): Allows for a slow, creep-speed approach during final alignment, and faster speeds for regular lifting.
- Cross Traveling Speed (2–20 m/min): Ensures smooth acceleration and deceleration, drastically reducing load swing.
Designed for American Industrial Standards
The electrical system for this project was engineered strictly around the US power standard: 480V / 60Hz / 3Phase.
For overseas crane and hoist projects, matching local electrical standards goes beyond just the voltage. Yuantai Crane utilizes reliable electrical components, optimized enclosures, and standard-compliant wiring layouts. This ensures seamless integration with the facility’s existing electrical infrastructure and guarantees long-term component availability and reliability in the American market.
Why European Hoist Solutions Win in Modern Workshops
As manufacturing and maintenance facilities upgrade their production lines, the demand for smart, space-efficient, and low-maintenance lifting systems is soaring. Traditional fixed-speed hoists are being phased out in favor of European-spec systems because they offer:
- Lower Maintenance Costs: Gearboxes, motors, and brakes are engineered for longer service life.
- Structural Protection: Smooth VFD braking reduces the mechanical impact on your existing factory steel structures.
- Higher ROI: Better space utilization and faster, safer operations lead to overall increased workshop efficiency.
Hoist Selection Guide for Machinery Workshops
Every machinery workshop has unique operational layouts and lifting requirements. While low-headroom European wire rope hoists are ideal for maximizing vertical space and handling heavy parts, other configurations might better fit your specific workshop setup.
Below is a quick reference guide from Yuantai Crane to help you choose the right hoist type based on your workshop’s daily applications:
Whether you are designing a new facility from scratch or upgrading an old workshop with strict structural limitations, choosing the right hoist type is essential to balancing your budget and operational efficiency.
